MMS-C-XC Neodymium Mounting Magnets

EPI Product ID EPI-MMS-C-XC

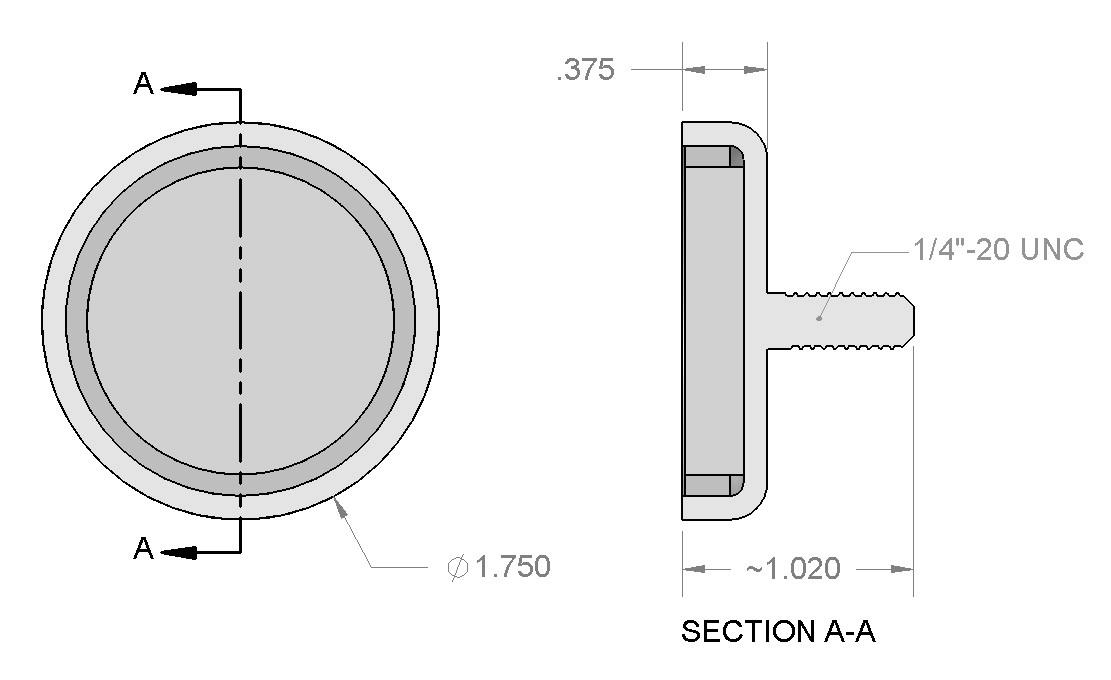

Dimensions Diameter = 1 3/4″ (1.75″) Threaded Male Stud = 1/4″-20 UNC 2A Height = 3/8″ (0.375″)
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 125.4 lbs

Description

Introducing the MMS-C-XC, a meticulously constructed flat mounting magnet, complemented by a robust male stud that’s permanently embedded in the mount. This magnet epitomizes efficiency: expertly designed for seamless insertion through a hole and secured with a nut, it’s the quintessential choice for streamlined hardware assembly attachments. Its sleek profile, coupled with its anchoring capabilities, positions it as an indispensable tool for projects demanding a secure magnetic connection. Experience precision and convenience in unison with the MMS-C-XC!
