MMS-C-Y0 Neodymium Mounting Magnets

EPI Product ID EPI-MMS-C-Y0

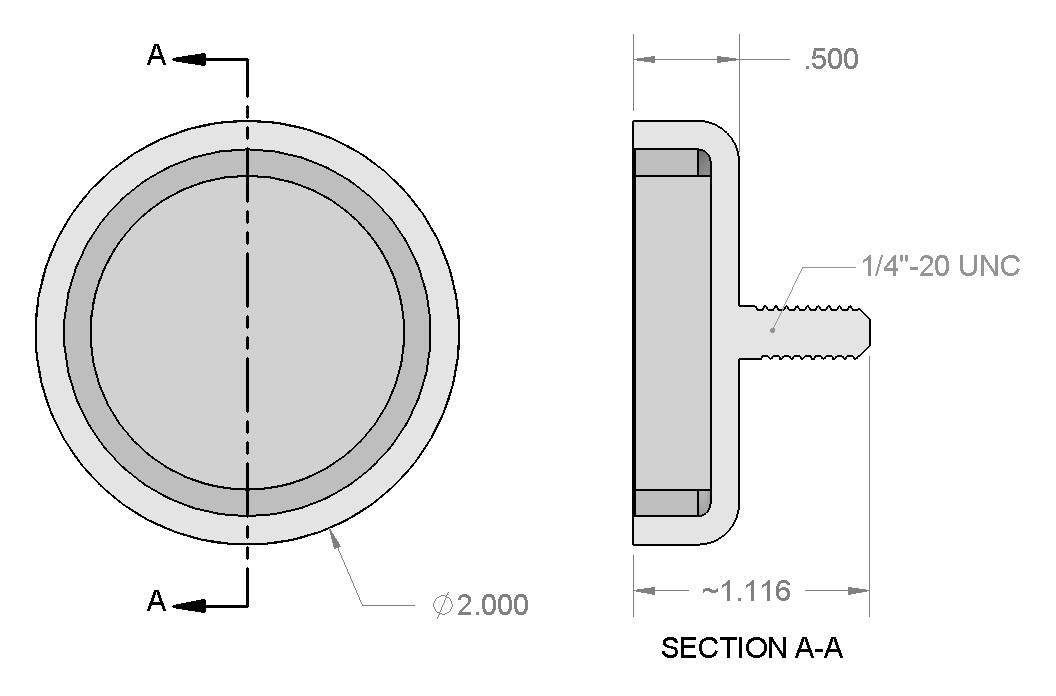

Dimensions Diameter = 2″ (2.00″) Threaded Male Stud = 1/4″-20 UNC 2A Height = 1/2″ (0.50″)
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 173.0 lbs

Description

Presenting the MMS-C-Y0, an elegantly designed flat mounting magnet, integrated with a resilient male stud that’s securely anchored to the mount. This magnet is the embodiment of practicality: tailored for effortless insertion through a hole and fastened with a nut, it stands as the optimal solution for hardware assembly attachments. Its streamlined design, combined with its anchoring prowess, makes it a must-have for any assembly requiring a steadfast magnetic bond. Dive into a realm of precision and adaptability with the MMS-C-Y0 at your side!
