EPI Product ID | EPI-MMS-C-Y8 |
---|---|

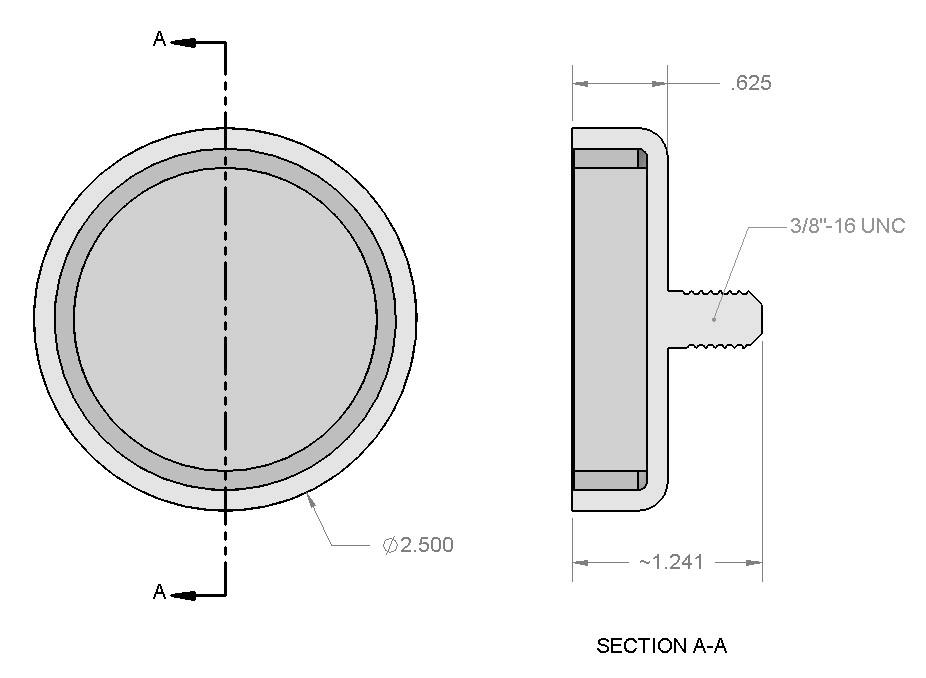

Dimensions | Diameter = 2 1/2″ (2.50″) Threaded Male Stud = 3/8″-16 UNC 2A Height = 5/8″ (0.625″) |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 259.1 lbs |
Unveiling the MMS-C-Y8, a precision-engineered flat mounting magnet, harmoniously integrated with a durable male stud that’s steadfastly affixed to the mount. This magnet stands as a beacon of adaptability: expertly crafted for smooth insertion through a hole and secured with a nut, it emerges as the prime choice for efficient hardware assembly attachments. Its sleek aesthetics, paired with its formidable anchoring capabilities, position it as a pivotal component for projects that demand a reliable magnetic bond. Elevate your assembly process with the unmatched utility of the MMS-C-Y8!
