EPI Product ID | EPI-MMS-D-A |
---|---|

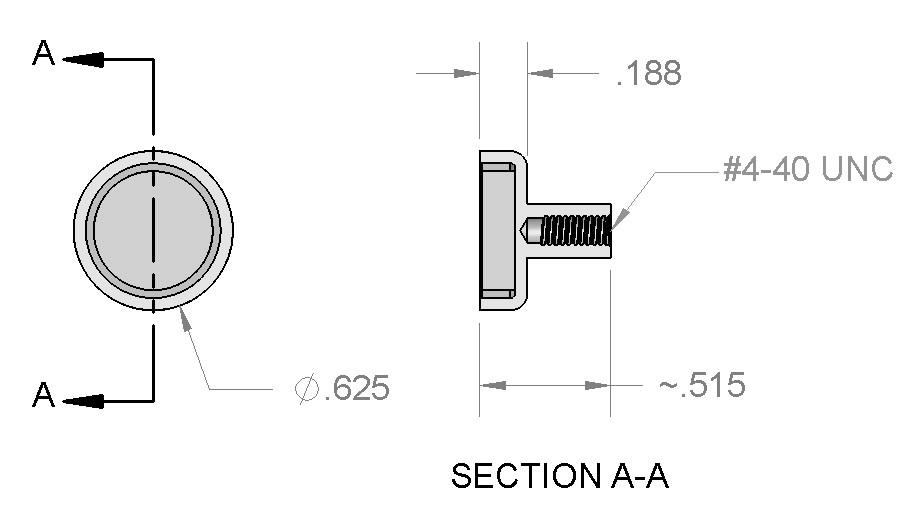

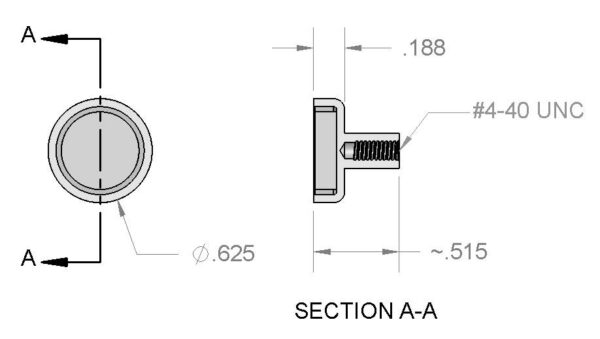

Dimensions | Diameter = 5/8″ (0.625″) Threaded Female Stud = #4-40 UNC 2B Height = 3/16″ (0.188″) |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Axial (Poles on Flat Ends) |
Pull Force | 15.63 lbs |
Showcasing the MMS-D-A, a sleek flat mounting magnet, integrated with a female threaded shaft that’s permanently affixed. This magnet is the embodiment of precision: when your project requires a magnetic attachment to a threaded component, it stands ready to deliver. Its streamlined design, combined with its versatile threaded feature, makes it an indispensable asset for projects that demand a secure and adaptable magnetic connection. Elevate your project’s versatility and design with the unmatched utility of the MMS-D-A!
