| EPI Product ID | EPI-MMS-D-Y0 |
|---|---|

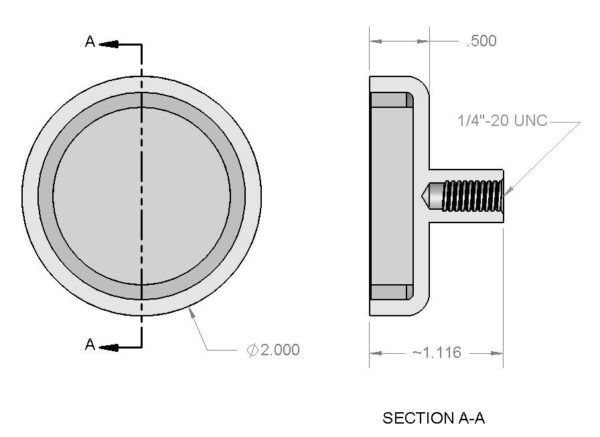

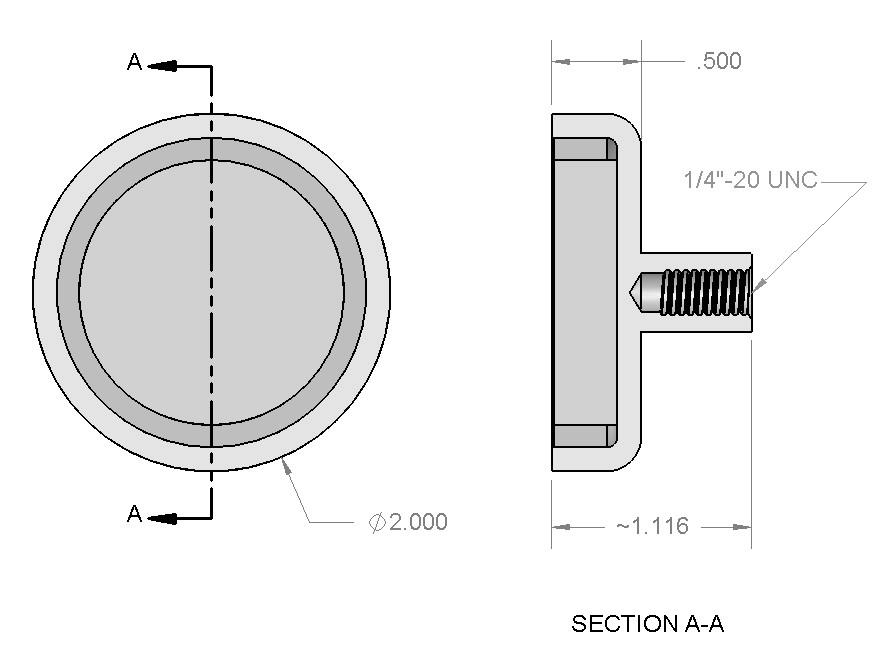

| Dimensions | Diameter = 2″ (2.00″) Threaded Female Stud = 1/4″-20 UNC 2B Height = 1/2″ (0.50″) |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 173.0 lbs |
Introducing the MMS-D-Y0, a masterfully crafted flat mounting magnet, equipped with a female threaded shaft that’s permanently embedded. True to the MMS-D style, this magnet is the embodiment of adaptability: when your task demands a magnetic connection to a threaded element, it stands ready to deliver. Its refined aesthetics, combined with its threading capability, make it a cornerstone for projects that require a versatile magnetic bond. Elevate your project’s adaptability and precision with the unmatched capabilities of the MMS-D-Y0!
