| EPI Product ID | EPI-R422CS-N-N52 |
|---|---|

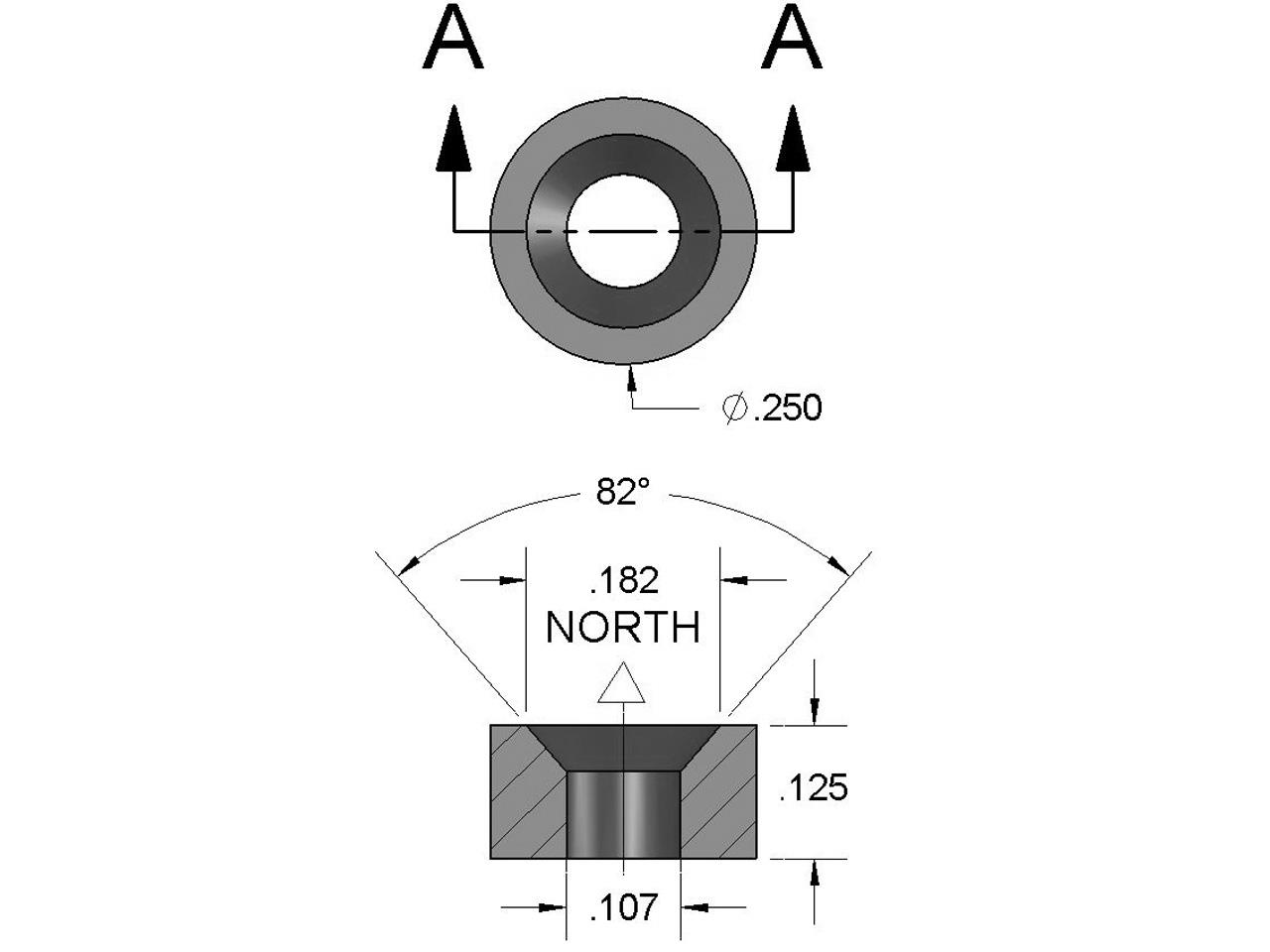

| Dimensions | 1/4″ od x 1/8″ thick with countersunk hole for #2 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 1.43 lbs |
These are petite, robust countersunk ring magnets, precisely sized for #2 flat-head screws. The north pole is situated on the side of the magnet with the large hole, where the screw head would be placed.
These small countersunk rings are versatile for a multitude of applications and are excellent for craft projects. Also available in the N42 grade as part number R422CS-N.
