| EPI Product ID | EPI-R422CS-P-N52 |
|---|---|
| Dimensions | 1/4″ od x 1/8″ thick with countersunk hole for #2 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 1.43 lbs |

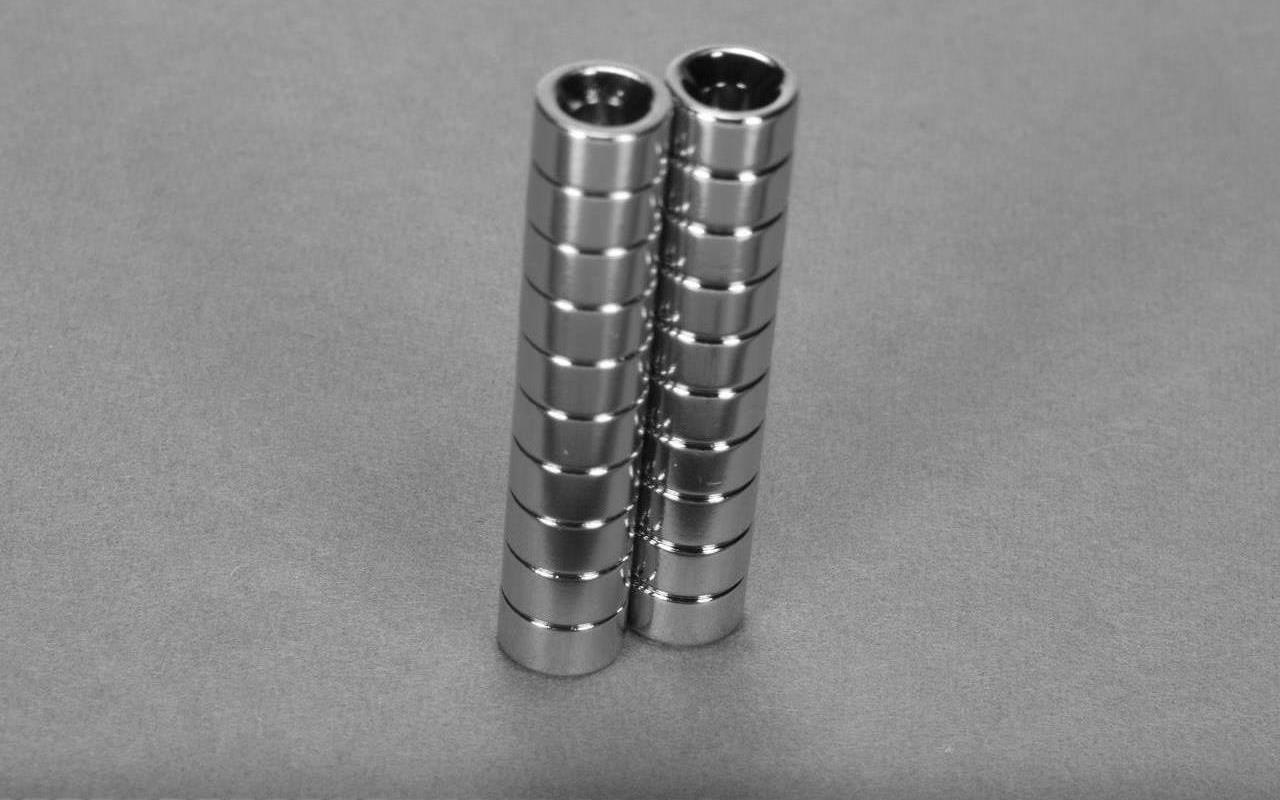

Potent countersunk ring magnets, precisely sized for #2 flat-head screws.
These rings are offered in pairs. One will feature the north pole on the side with the large end of the hole, and the other will have the south pole on that side, ensuring they attract each other when screwed in.
These small countersunk rings are versatile for a multitude of applications, including closures for cabinet doors and handbags. Also available in the N42 grade, part number R422CS-P.
