| EPI Product ID | EPI-R422CS-P |
|---|---|
| Dimensions | 1/4″ od x 1/8″ thick with countersunk hole for #2 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 1.19 lbs |

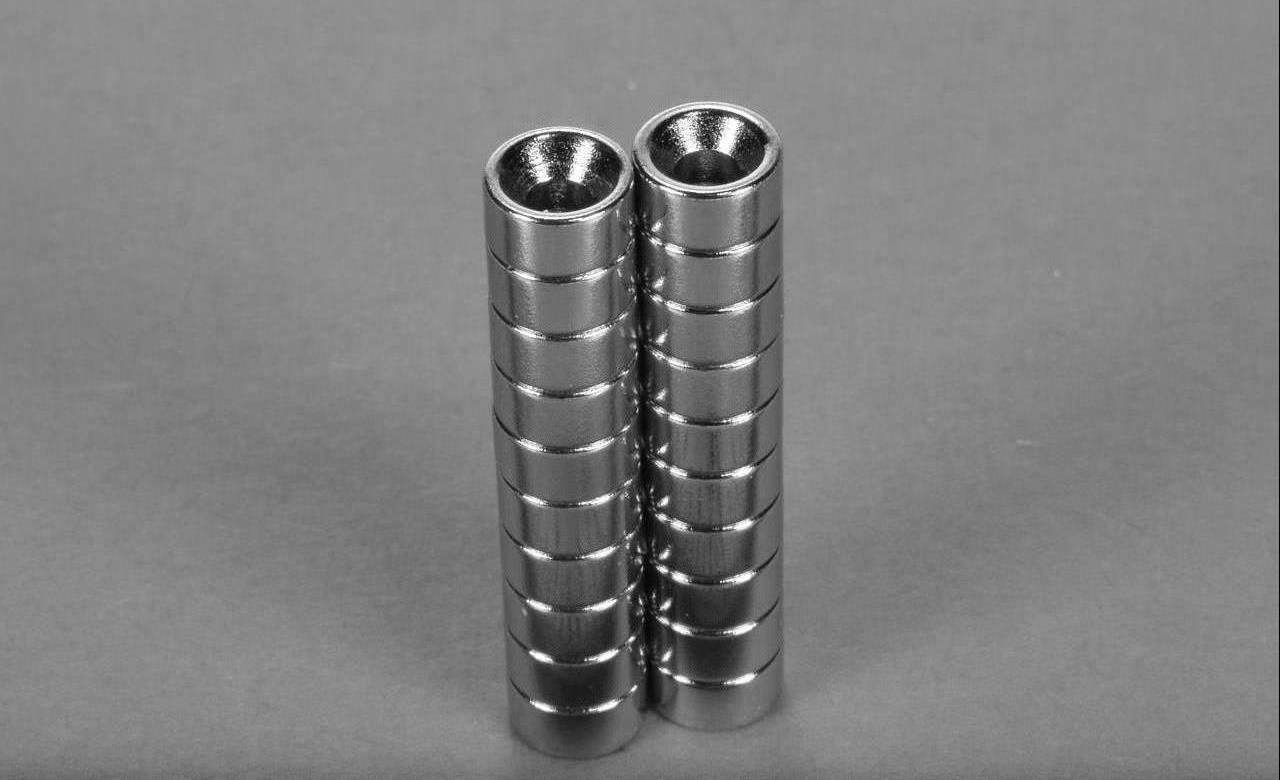

Robust countersunk ring magnets, specifically sized for #2 flat-head screws.
These rings are retailed in pairs. One will feature the north pole on the side with the large end of the hole, and the other will have the south pole on that side, enabling them to attract each other when screwed in.
These small countersunk rings are versatile for a broad spectrum of applications, including closures for cabinet doors and handbags. Also available in the stronger N52 grade, part number R422CS-P-N52.
