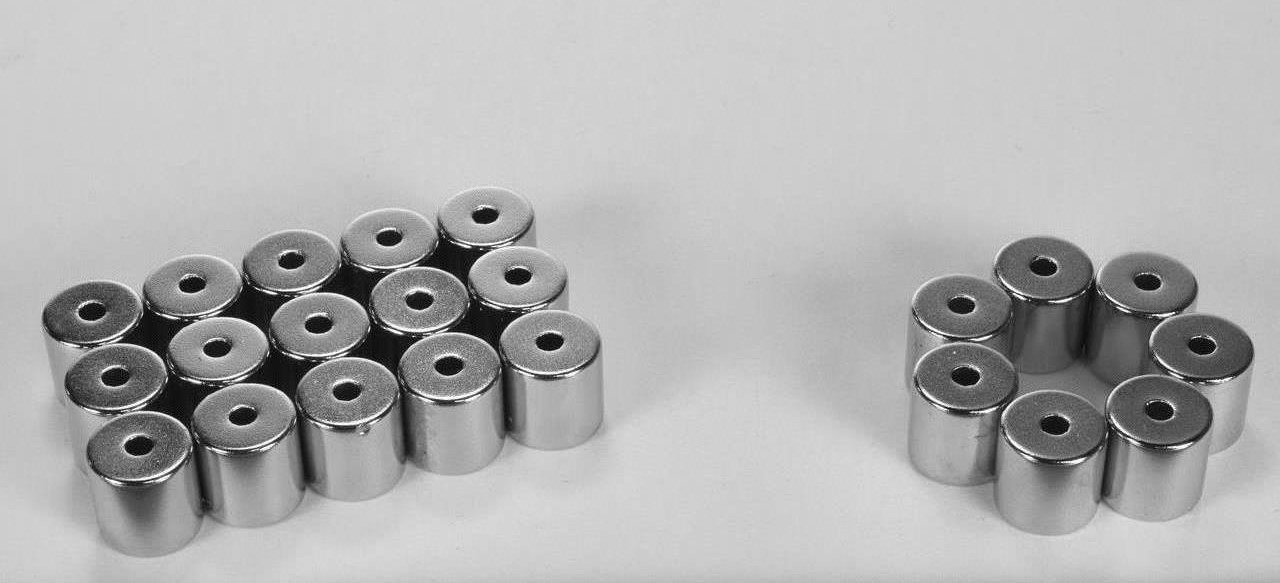

R6036DIA Neodymium Ring Magnets

EPI Product ID EPI-R6036DIA
Dimensions 3/8″ od x 3/32″ id x 3/8″ thick
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Diametrical
Pull Force 5.35 lbs

Description

These circular magnets possess a unique diametrical magnetization, where the magnetic orientation runs perpendicular to the hole’s central axis. This design positions the poles on the contrasting sides of the ring’s surface. When mounted on a rod or shaft, they excel in interacting with sensors or facilitating electrical generation.
