| EPI Product ID | EPI-RC22CS-N-N52 |
|---|---|

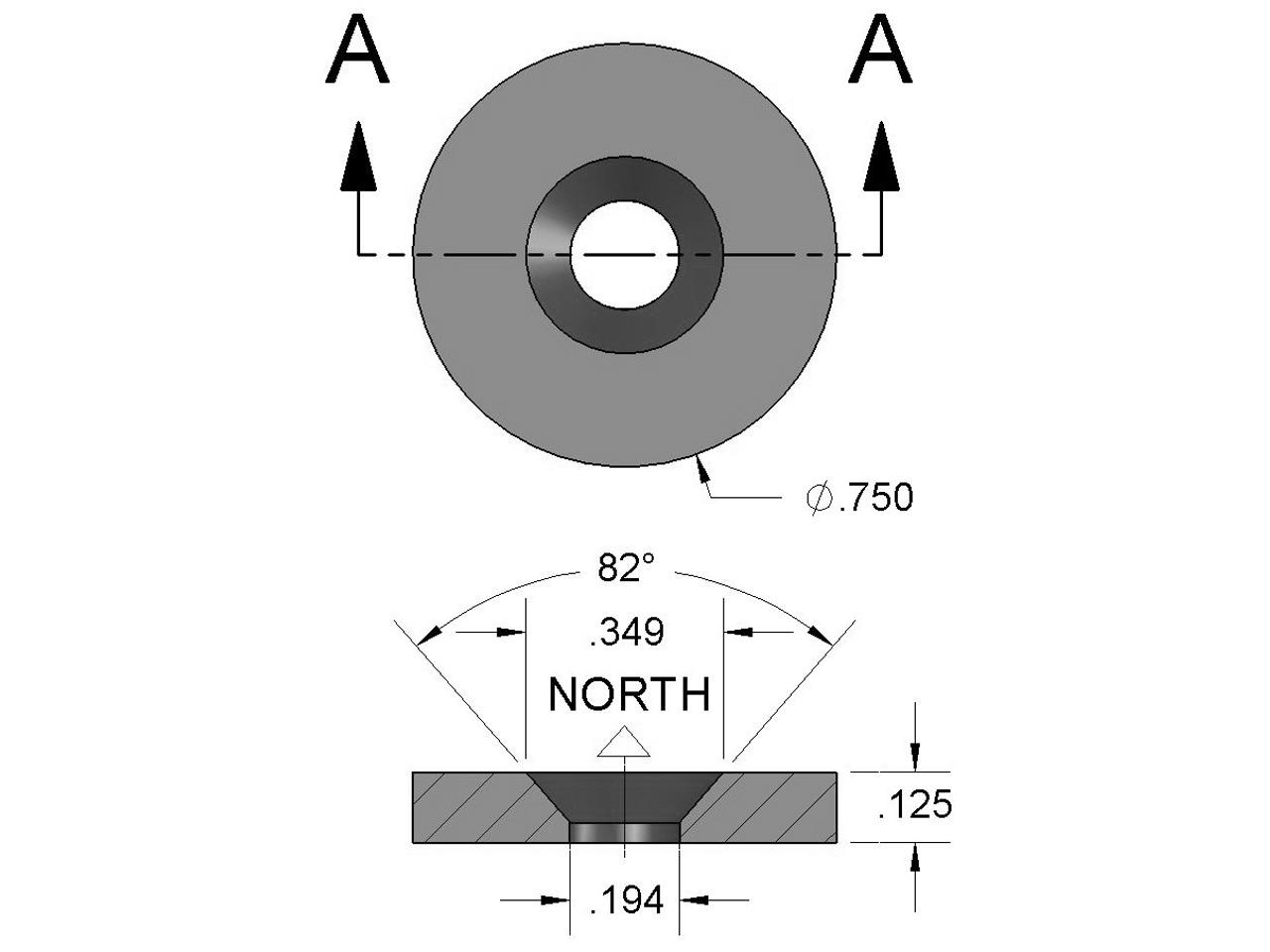

| Dimensions | 3/4″ od x 1/8″ thick with countersunk hole for #8 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 10.42 lbs |
Harness the strength of the RC22CS-N-N52 countersunk ring magnets, precision-crafted to fit #8 flat-head screws. The design places the north pole on the side featuring the broader hole, perfectly designed for the screw’s head.
With their distinct countersunk design, these rings are versatile, proving invaluable for an array of applications, from securing doors to organizing tools with ease.
