| EPI Product ID | EPI-RC22CS-P |
|---|---|
| Dimensions | 3/4″ od x 1/8″ thick with countersunk hole for #8 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 8.68 lbs |

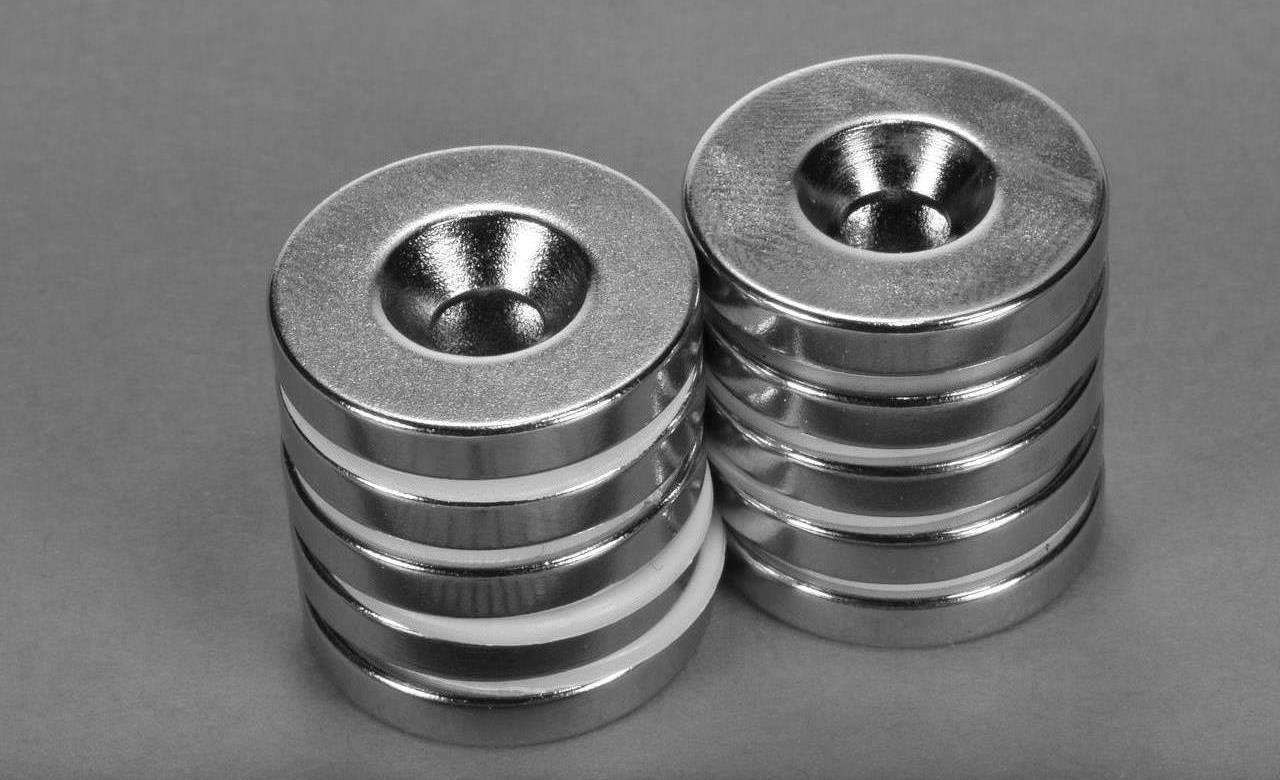

Introducing the RC22CS-P countersunk ring magnets, expertly tailored for #8 flat-head screws.
Offered in pairs, these rings are designed with precision. One ring showcases the north pole on the side with the broader hole end, while its counterpart features the south pole in the same position, ensuring a magnetic attraction upon installation.
Their unique countersunk design lends itself to a myriad of applications, from ensuring doors remain shut to providing a reliable hang for tools.
