| EPI Product ID | EPI-RC22CS-S |
|---|---|

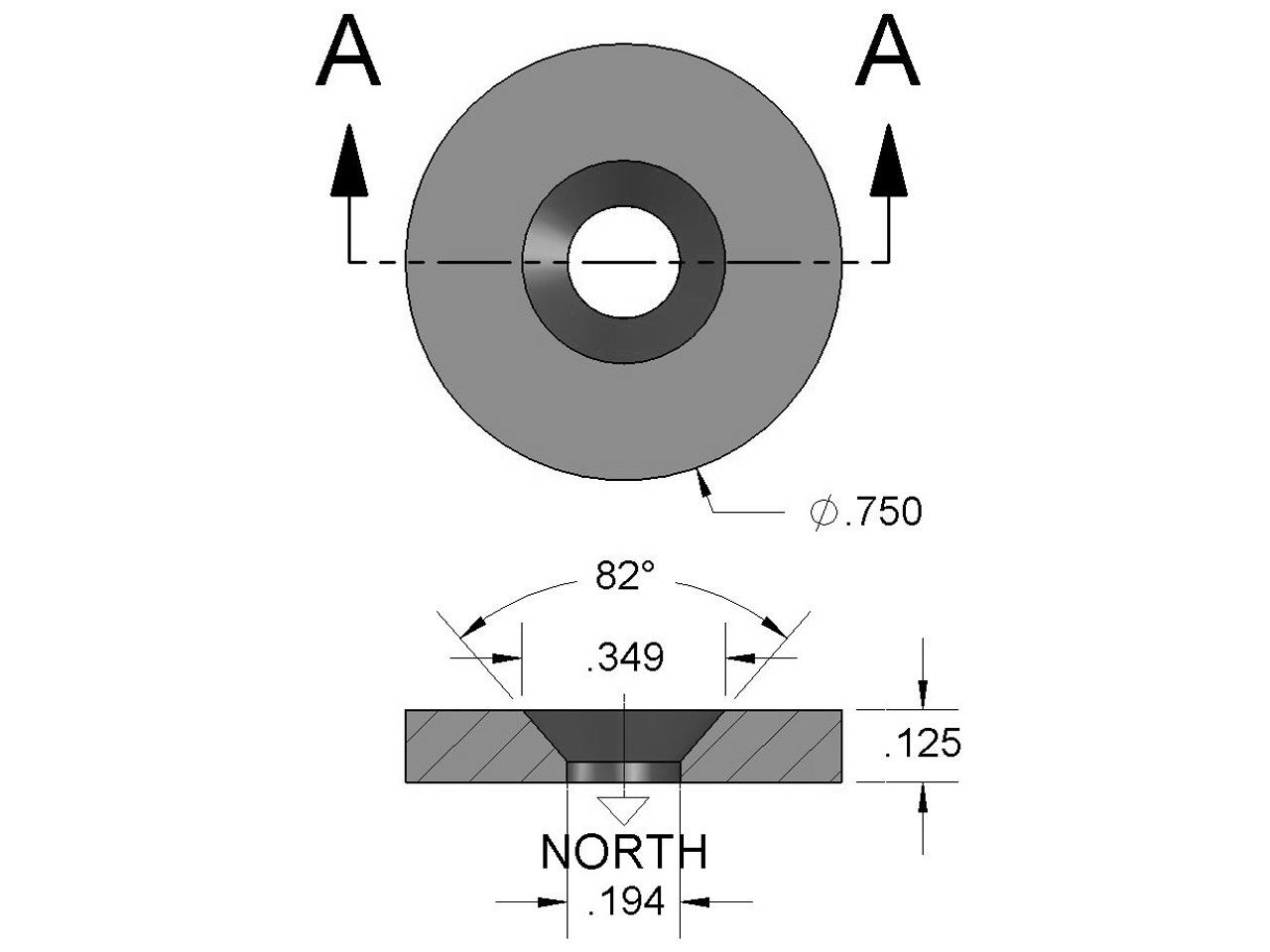

| Dimensions | 3/4″ od x 1/8″ thick with countersunk hole for #8 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 8.68 lbs |
Discover the strength of our RC22CS-S countersunk ring magnets, precision-engineered for #8 flat-head screws. Notably, the south pole is positioned on the side with the expansive hole, designed to house the screw’s head.
Their precise countersunk design offers versatility, proving invaluable for a spectrum of uses, from ensuring doors remain shut to efficiently hanging tools.
For those in pursuit of amplified magnetic strength, consider pairing them with our NSCC2 Steel Cups, which can significantly enhance the pull force.
