| EPI Product ID | EPI-RE22CS-P |
|---|---|
| Dimensions | 7/8″ od x 1/8″ thick with countersunk hole for #8 screw |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 10.23 lbs |

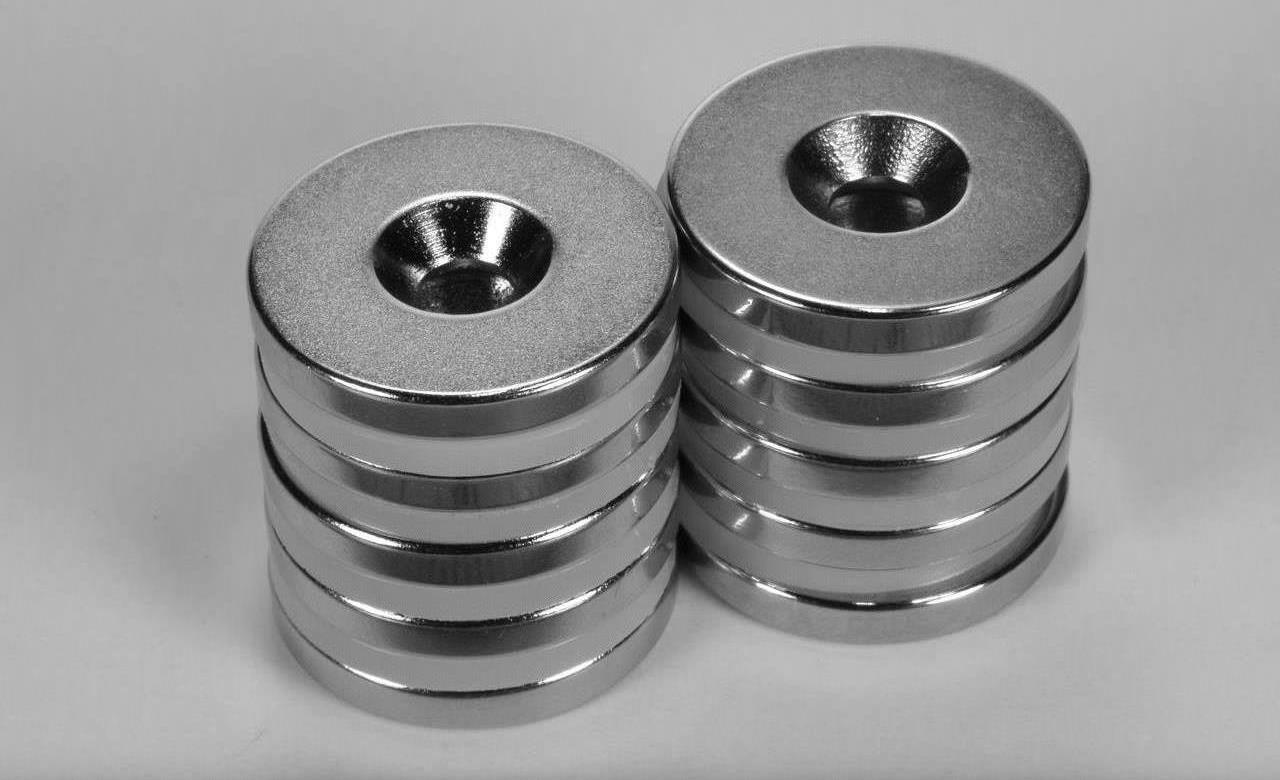

Featuring a 7/8″ diameter and a 1/8″ thickness, the RE22CS-P countersunk ring magnets are tailored to accommodate a #8 countersunk screw. Offered as a complementary pair, one ring showcases the north pole on the countersink side, while its counterpart features the south pole in the same position, ensuring a magnetic attraction upon installation.
Their unique countersunk design lends itself to a myriad of applications, from ensuring doors remain shut to providing a reliable hang for tools.
