| EPI Product ID | EPI-RE22CS-S-N52 |
|---|---|

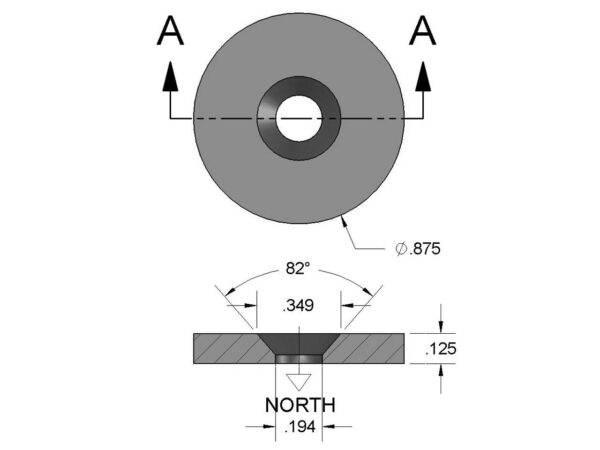

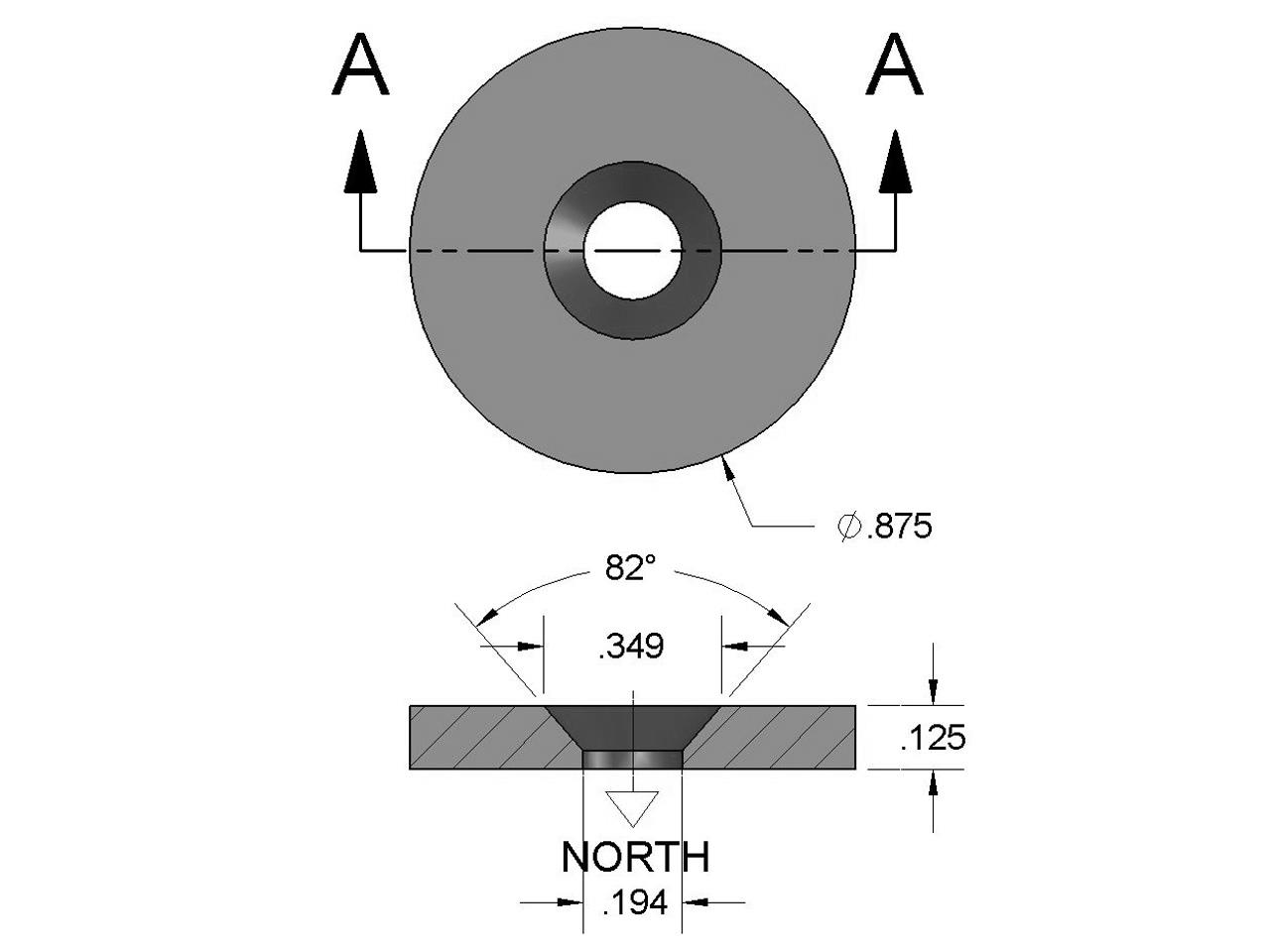

| Dimensions | 7/8″ od x 1/8″ thick with countersunk hole for #8 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 12.28 lbs |
Boasting a 7/8″ diameter and a 1/8″ thickness, the RE22CS-S-N52 countersunk ring magnets are precision-crafted to fit a #8 countersunk screw. Distinctly, the south pole is positioned on the countersink side.
With their specialized countersunk design, these rings are versatile, proving invaluable for a spectrum of uses, from securing doors to efficiently hanging tools.
