| EPI Product ID | EPI-RX033CS-N-N52 |
|---|---|

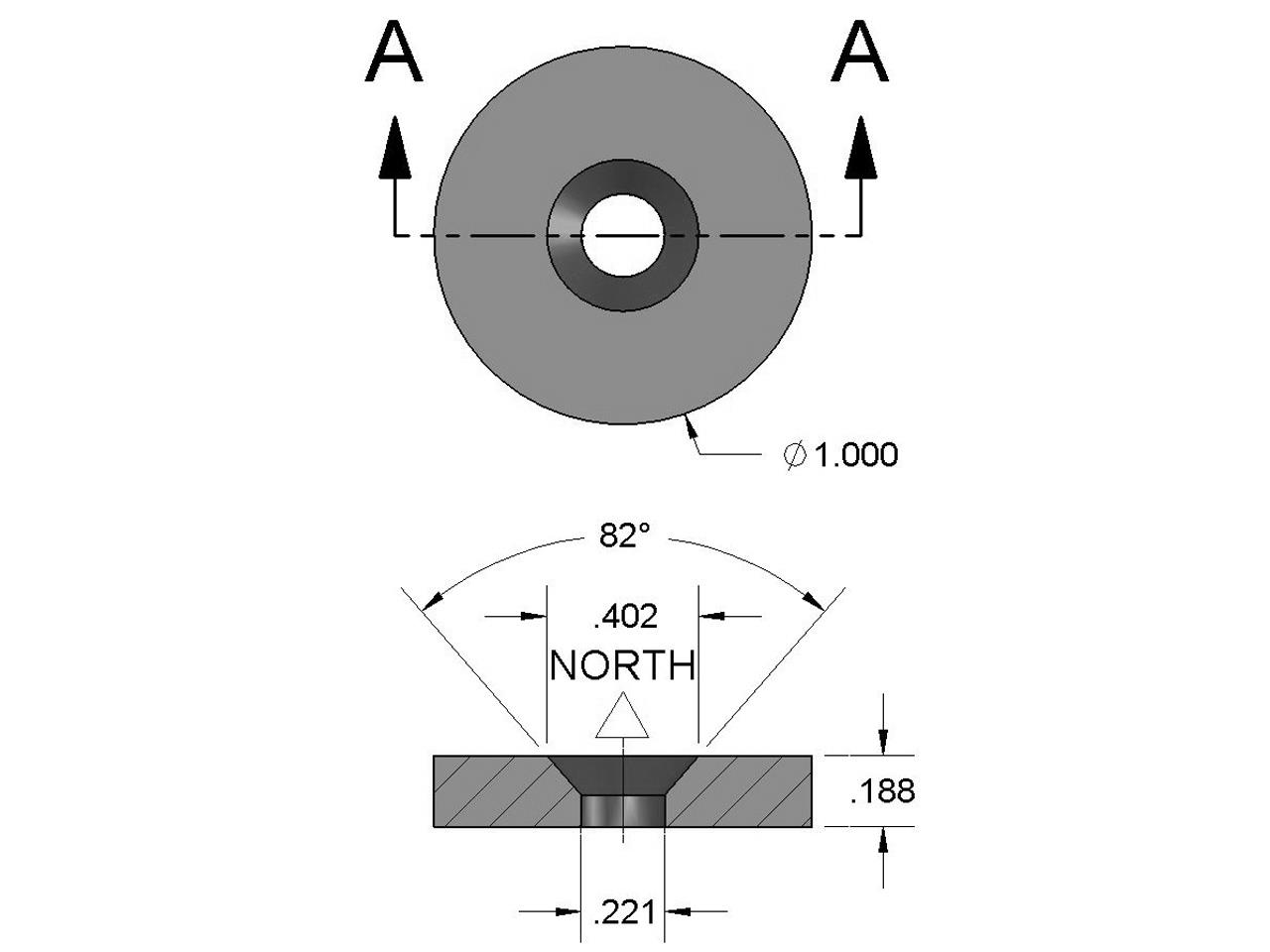

| Dimensions | 1″ od x 3/16″ thick with countersunk hole for #10 screw |
| Tolerances | All ±0.004″ |
| Grade | N52 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Axial (Poles on Flat Ends) |
| Pull Force | 24.61 lbs |
Boasting a 1″ diameter and a 3/16″ thickness, the RX033CS-N-N52 countersunk ring magnets are meticulously crafted to fit a #10 countersunk screw. Notably, the north pole is positioned on the countersink side.
With their specialized countersunk design, these rings are versatile, proving invaluable for a range of applications, from securing doors to efficiently hanging tools.
