EPI Product ID | EPI-RY04Y0DIA |
---|---|
Dimensions | 2″ od x 1/4″ id x 2″ thick |
Tolerances | All ±0.004″ |
Grade | N42 |
Plating/Coating | Ni-Cu-Ni (Nickel) |
Magnetization Direction | Diametrical |
Pull Force | 133.7 lbs |

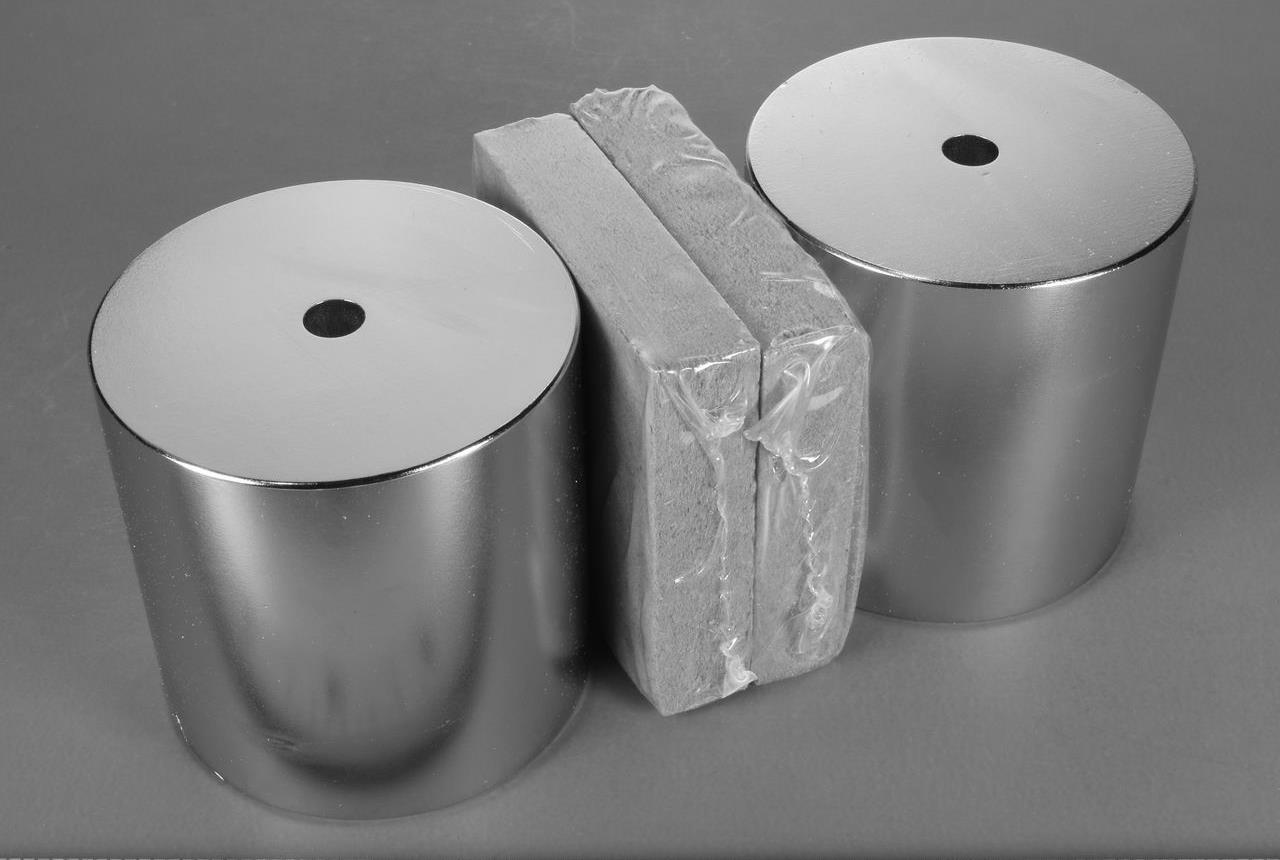

The RY04Y0DIA is a testament to the pinnacle of magnetic strength. Its unique diametrical magnetization means that its poles are located on opposite curved sides, making it especially suited for certain applications but also more challenging to handle. With such immense power, these rings are not for the faint-hearted or inexperienced.
The potential hazards associated with these magnets cannot be overstated. Their formidable force can lead to severe pinching or other injuries if not approached with the utmost caution and respect. They are, without a doubt, EXTREMELY DANGEROUS.
Before considering a purchase, it’s imperative to familiarize yourself with our Neodymium Magnet Safety Page and to fully agree with our Terms and Conditions.
For those who require a different magnetic orientation, this size is also available in an axially magnetized version, designated by the part number RY04Y0.
