| EPI Product ID | EPI-SB443-IN |
|---|---|
| Dimensions | 1/4″ length x 1/4″ width x 3/16″ thick , with step IN |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 3.42 lbs |

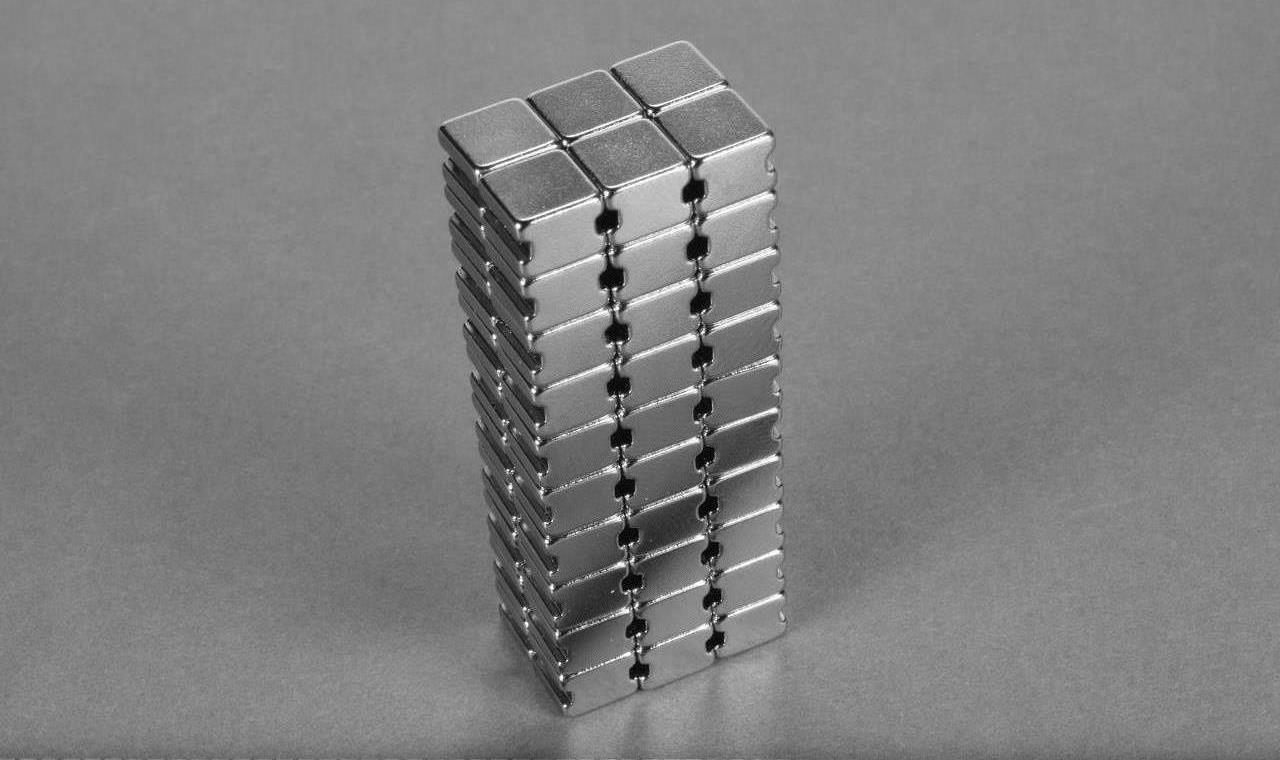

These innovative stepped block magnets offer an outstanding blend of strong holding power and distinct inset steps on two sides. This unique design feature opens up a wide range of securing methods for these magnets in your assembly, catering to various needs. If you are seeking a magnet solution that mitigates the need for adhesives, this magnet serves as the perfect answer.
