| EPI Product ID | EPI-SB483-IN |
|---|---|
| Dimensions | 1/4″ length x 1/2″ width x 3/16″ thick , with step IN |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 5.92 lbs |

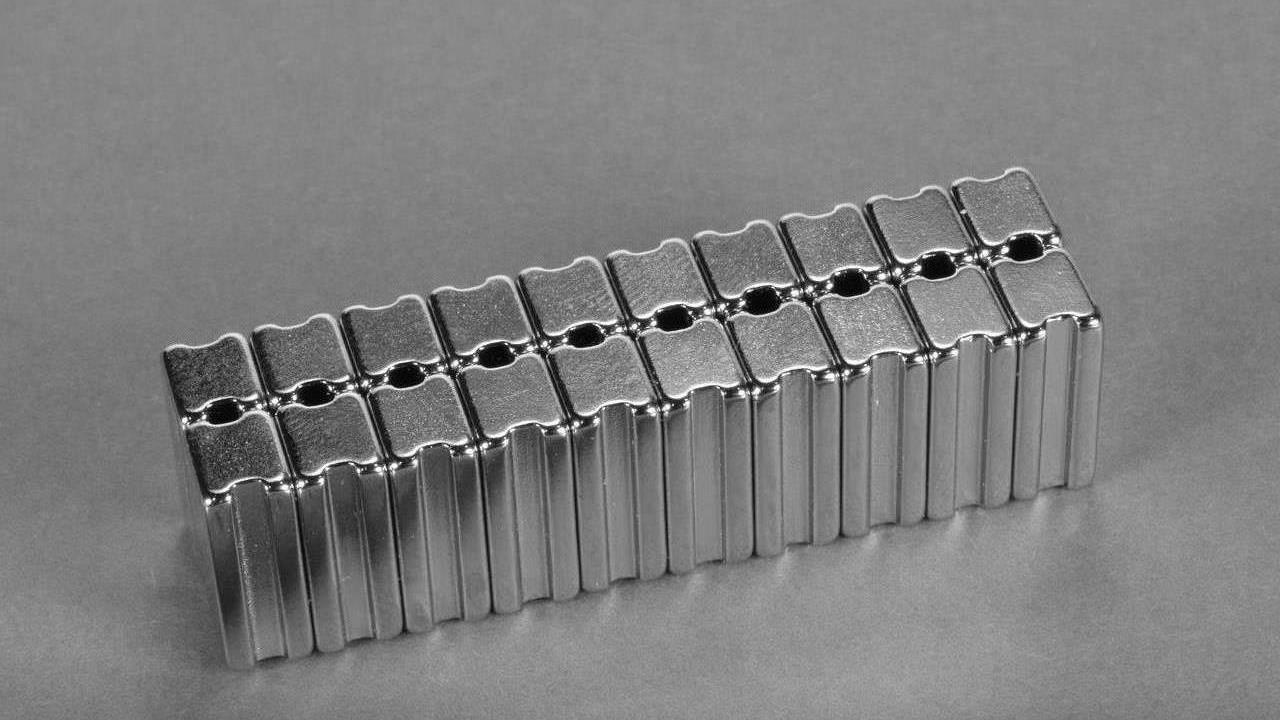

These cleverly designed stepped block magnets offer a potent combination of substantial holding power and characteristic inset steps on two sides. This sought-after feature provides versatility in employing diverse methods for securing the magnet within your assembly. If you’re aiming to sidestep the use of adhesives, this magnet is your ideal solution.
