| EPI Product ID | EPI-SB6C4-OUT |
|---|---|
| Dimensions | 3/8″ length x 3/4″ width x 1/4″ thick , with step OUT |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 15.71 lbs |

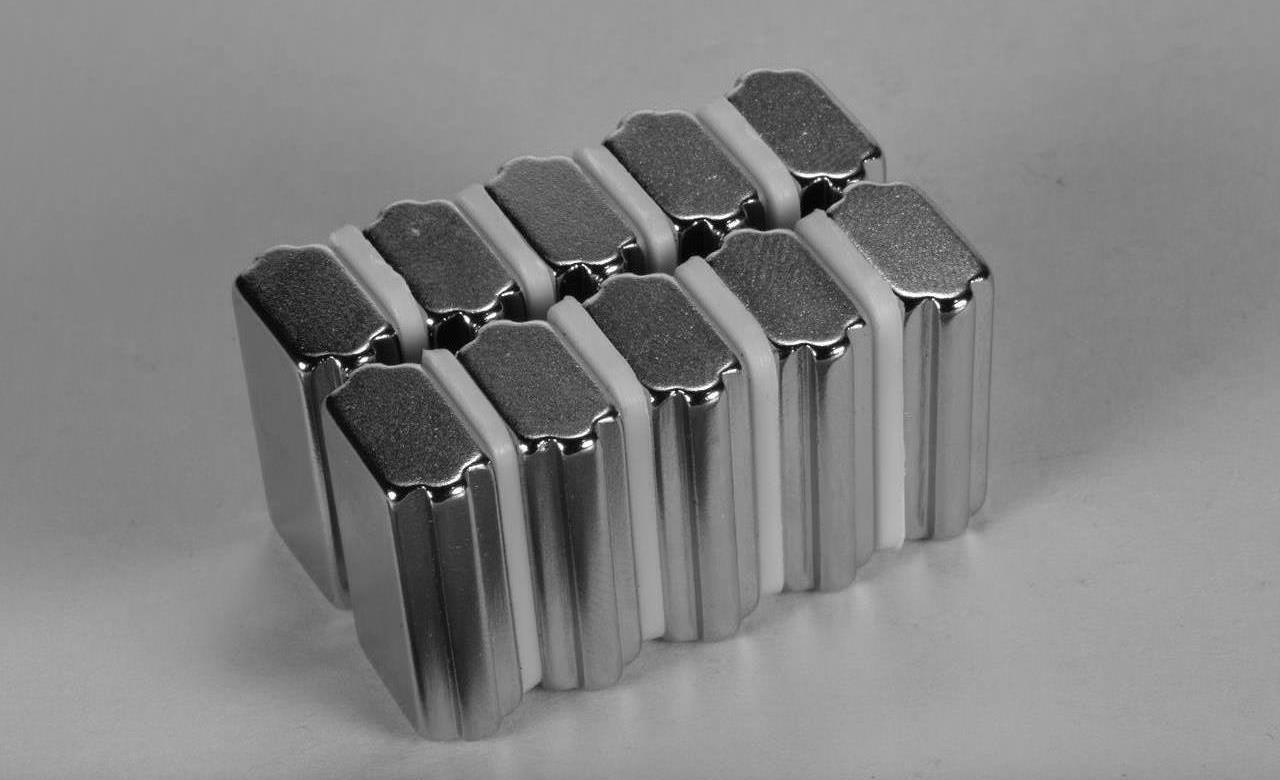

These distinctive stepped block magnets fuse powerful holding capacity with two unique outset steps. This frequently requested feature enables a wide range of securing methods for the magnet within your assembly. For those seeking to forgo the use of adhesives, this magnet is the ideal solution.
