| EPI Product ID | EPI-SBCC6-OUT |
|---|---|
| Dimensions | 3/4″ length x 3/4″ width x 3/8″ thick , with step OUT |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 31.72 lbs |

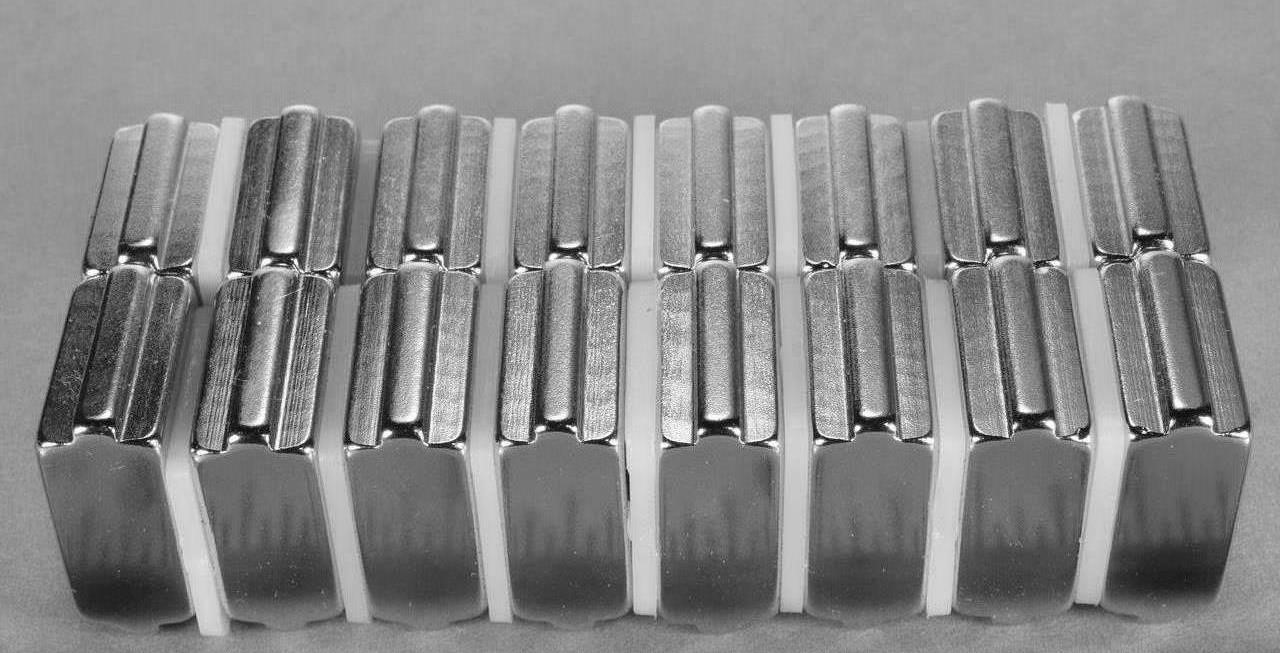

These specialized stepped block magnets fuse substantial holding force with two pronounced outset steps. This frequently requested feature allows for the utilization of diverse securing methods within your assembly. For those striving to bypass the use of adhesives, this magnet is the perfect solution.
