| EPI Product ID | EPI-SBCX86-OUT |
|---|---|
| Dimensions | 3/4″ length x 1 1/2″ width x 3/8″ thick , with step OUT |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 48.63 lbs |

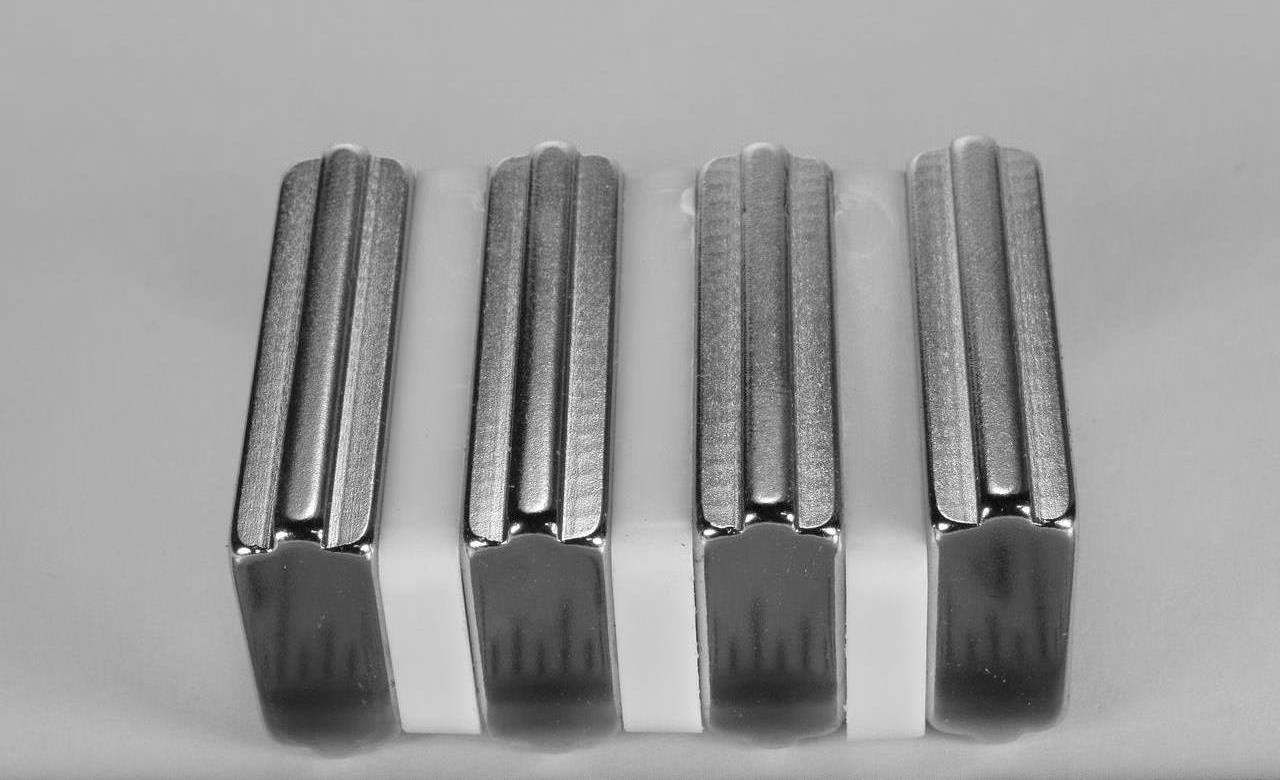

These unique stepped block magnets blend powerful holding prowess with two notable outset steps. This highly desired feature allows for numerous securing techniques within your assembly. If your goal is to steer clear of the use of adhesives, this magnet is the ultimate answer.
