| EPI Product ID | EPI-SBX0X06-OUT |
|---|---|
| Dimensions | 1″ length x 1″ width x 3/8″ thick , with step OUT |
| Tolerances | All ±0.004″ |
| Grade | N42 |
| Plating/Coating | Ni-Cu-Ni (Nickel) |
| Magnetization Direction | Thru Thickness |
| Pull Force | 45.04 lbs |

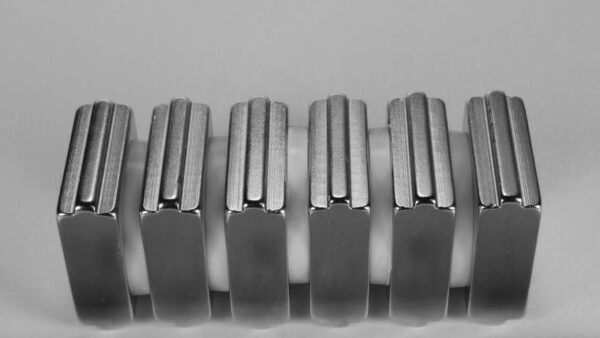

These specialized stepped block magnets incorporate powerful holding capacity with two distinctive outset steps. This highly requested feature allows for the implementation of numerous securing approaches within your assembly. For those aiming to eliminate the use of adhesives, this magnet emerges as the perfect solution.
