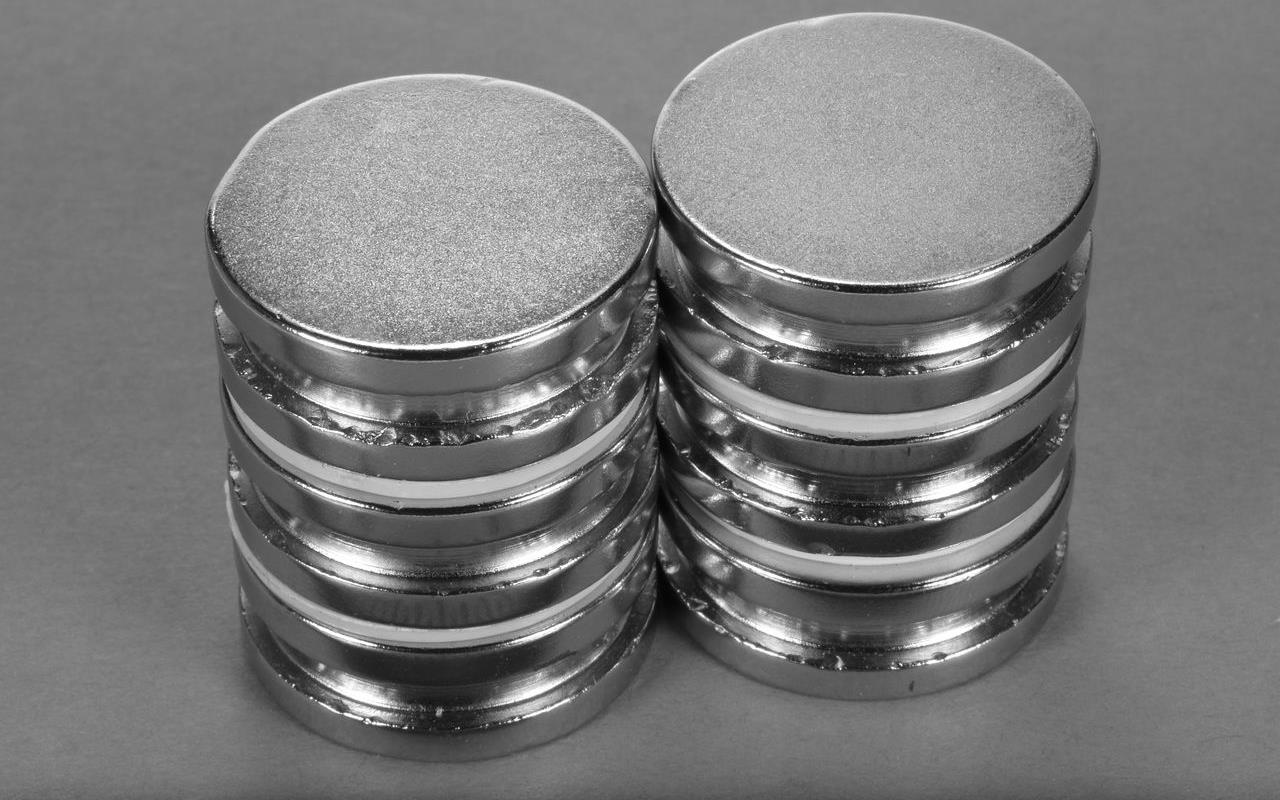

SDX06-IN Neodymium Disc/Cylinder Magnets

EPI Product ID EPI-SDX06-IN
Dimensions 1″ dia. x 3/8″ thick with step IN
Tolerances All ±0.004″
Grade N42
Plating/Coating Ni-Cu-Ni (Nickel)
Magnetization Direction Axial (Poles on Flat Ends)
Pull Force 34.71 lbs

Description

Experience the fusion of strength and convenience with our SDX06-IN stepped disc magnets. These magnets manifest a powerful blend of formidable holding capacity and a unique inset layout encircling the magnet’s perimeter.

The defining attribute of these magnets is the ingenious inset area along the circumference. This highly desirable feature opens up a wide spectrum of possibilities for securing the magnet within your assembly, offering you the flexibility to customize to your specific requirements.

The SDX06-IN stepped disc magnet is a beacon for those seeking solutions without the need for adhesives. By eliminating the need for glues or tapes, this magnet offers a clean, efficient, and highly effective solution.

SDX06-IN is more than just a magnet—it represents ingenuity, superior design, and serves as the perfect adhesive-free alternative. Experience the amalgamation of power and practicality with our SDX06-IN.
